Product Description

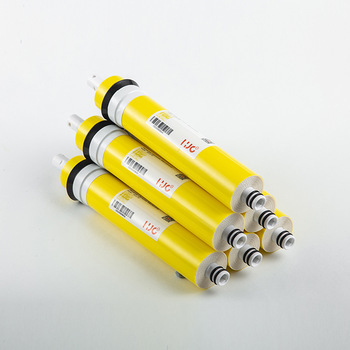

Supported with our technologically advanced manufacturing unit, we are indulged in providing 2nd Generation RO Membrane. These products use highly efficient membranes for filtration process and this industrial reverse osmosis. Our offered range is highly durable and efficient, hence widely appreciated by our clients for its attributes like longer service life & easy installation. In order to ensure the quality of these 2nd Generation RO Membranes, our quality controllers test it against several parameters. Additionally, customers can avail these products from us in various specifications.
Technical Specifications
| Model | Adapted pressure | Salt rejection (%) | Flow rate (GPD) | Effective membrane area | Packing weight/size |
| 1812-75 | 60 psi | 97.0 | 75 | 3.5ft2 |
25 pcs/carton 6 kg (0.345x0.3x0.3) |
| 1812-85 | 60 psi | 97.0 | 85 | 4.2ft2 |
| 2012-100 | 60 psi | 97.0 | 100 | 5.0ft2 |
| 2012-150 | 60 psi | 97.0 | 150 | 5.2ft2 |
| 3012-300 | 60 psi | 97.0 | 300 | 36ft2 | 10 pcs/carton 6.0 kg(0.41x0.34x0.4) |
| 3013-400 | 60 psi | 97.0 | 400 | 40ft2 |
APPLICATION DATA:
Operating Limits
- Max. Operating Pressure: 300psi
- Max. Feed Flow Rate: 2 gpm (0.45 m3/hr)
- Max. Operating Temperature: 45°C.
- Operating pH Range: 2.0 11.0
- Max. Turbidity: 1.0 NTU
- Max. SDI (15 min): 5.0
- Max. Chlorine Concentration < 0.1 mg/L
